RU Crimes Database - 107 Course Points

The purpose of this assignment is to implement and maintain a separate chaining Hash Table containing crime Incident data.

You can download and submit the project files via Autolab.

Refer to our Programming Assignments FAQ for instructions on how to install VSCode, how to use the command line and how to submit your assignments.

See this video on how to import the project into VSCode and how to submit into Autolab.

The assignment has two components:

  • Coding (107 points) submitted through Autolab.
  • Reflection (3 points) submitted through a form. Submit the reflection AFTER you have completed the coding component. Be sure to sign in with your RU credentials! (netid@scarletmail.rutgers.edu) You cannot resubmit reflections, but you can edit your responses before the deadline by clicking the Google Form link, signing in with your NetID, and selecting “Edit your response.”

Overview

In this assignment, you’ll analyze crime incident data from Rutgers University’s public safety database using hash tables with separate chaining. You’ll be working with authentic crime log data from the New Brunswick campus, including detailed information about each incident such as case numbers, nature of crimes, report and occurrence dates, locations across campus, and case dispositions.

You’ll implement all methods in the RUCrimeDatabase.java class to create a hashtable structure that uses the separate chaining collision resolution approach you’ve learned in lecture. The data structure will store incidents based on their case numbers, with each Incident containing all related incidents for a particular case. Through this implementation, you’ll gain hands-on experience building an efficient system for crime data analysis while learning more about safety patterns within the Rutgers community.

The data we will be using was obtained directly from Rutgers’ Daily Crime & Fire Safety Log, specifically focusing on New Brunswick campus incidents, with slight edits made to the provided data.

Implementation

Overview of files provided

  • RUCrimeDatabase.java (you will be submitting this file)
    This file is where you will complete the implementation of various methods to process and analyze crime logs. The methods in this class will create the hashtable and perform calculations based on the provided data. You will be writing your code in this file. DO NOT edit the provided methods or the methods signatures of any method.
    • incidentTable is the array of linked lists which is our hash table structure
    • totalIncidents tells us how many items are in our hash table
    • LOAD_FACTOR_THRESHOLD is a final double meaning it can not be changed, this will be used within addIncident and it lets us know when to resize our hash table
  • Incident.java – This class will be storing each individual crime record with attributes like incident number, nature, dates, location, and disposition. Do not modify this file.
  • Category.java – an enum class which represents constant values which you will use in the natureBreakdown() method, this is explained more within the method description below. Do not modify this file.
  • Driver.java – The driver will be testing all implemented methods through command-line input and output. You can modify this for your own testing purpose.
  • StdIn and StdOut, which are used by the driver. Do not edit these classes.
  • Multiple csv files which contain comprehensive data about each crime incident. The data file includes the incident number, nature, report date, occurrence date, location, disposition, and general location of each crime committed.

Working with LLNode<> objects

For assignments/labs in CS112, we will use a cs112.jar file containing useful classes. This includes the LLNode<> class, which implements a singly linked list node.

  • The LLNode class takes in a generic type, which means it can store any type of data.
    • Making a node: LLNode newNode = new LLNode(data) (replace T with a type)
    • Note that the data must be passed in for the constructor, and the data of a node can not be changed later (aka it is immutable)
  • Methods:
    • getNext() – returns the next node in the linked list
    • getData() – returns the data stored in the current node
    • setNext(LLNode nextNode) – sets the next node of the current node to nextNode

Implementation Notes

  • DO NOT add any instance variables to the RUCrimeDatabase class

  • DO NOT add any public methods to the RUCrimeDatabase class

  • DO NOT change the headers of ANY of the given functions

  • DO NOT add any import statements

  • DO NOT change the class name

  • DO NOT use System.exit()

Programming

To complete this assignment, you will implement the following methods to build, maintain, modify, and analyze the database of crimes.

To Run: run the following commands from the innermost RUCrimeDatabase directory, containing the src and bin folders.

  1. Compile:
    1. Windows: javac -d bin -cp “lib/cs112.jar” src/crime/*.java
    2. Mac/Linux: javac -d bin -cp lib/cs112.jar src/crime/*.java
  2. Run:
    1. Windows: java -cp “bin;lib/cs112.jar” crime.Driver
    2. Mac/Linux: java -cp bin:lib/cs112.jar crime.Driver

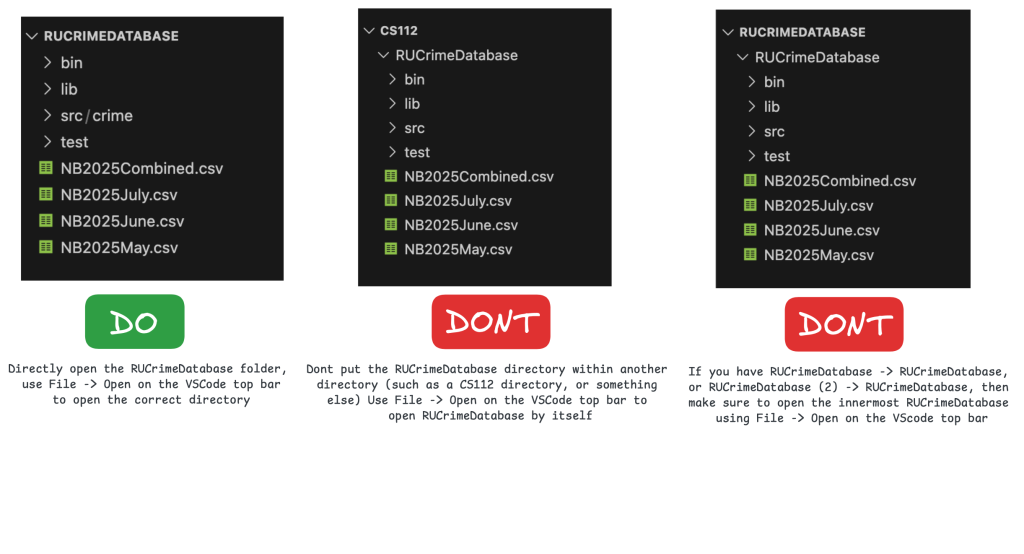

Ensure that you are working in the correct directory. See this image:

hashFunction() [PROVIDED]

This method returns the index in the hash table for a given incident number

Do not change this method. You call this method within addIncident and deleteIncident.

Methods to be implemented by you:

Note: The first three methods form the core functionality needed before any other methods will work. Before testing the driver, implement them in this order: addIncident then buildIncidentTable. Before running the later methods, make sure rehash is implemented.

addIncident(Incident incident)

This method inserts an Incident into the hash table stored at incidentTable.

You are given an Incident object to insert, via the method parameters. This is the candidate that we will attempt to insert – no duplicates are present in the input files.

Calculate which Hash Table index this incident belongs to by calling the hashFunction method and passing in the incidentNumber (the incidentNumber acts as they key)

Then, make an LLNode with this incident object and add that LLNode to the front of the hash table at that index. We do not need to check for duplicates since there will be no duplicates in the input files. Then increment totalIncidents to show that another incident was added to the hash table.

AFTER YOU INSERT, check if the number of incidents in the table (totalIncidents) divided by the length of the hash table is >= the threshold (LOAD_FACTOR_THRESHOLD as seen at the top of the java file). If it is, then call the rehash() method, you will implement resize later.

Complete this method and the next method for early submission extra credit.



Note: You need to complete the buildIncidentTable() method before you can test this method with the Driver.

buildIncidentTable(String inputfile)

This method is responsible for reading data from a CSV file. You will read the csv file line by line, until every line has been read.

The method reads the input file and calls addIncident. Each row of the CSV contains crime logs and comma-separated information about them.

Some helpful methods you will use in this method are:

  • StdIn.setFile – sets the file that will be read from
  • StdIn.readLine – reads a single line from the input file
  • StdIn.isEmpty – returns true is there is nothing left to read in the input file, or false if every line has been read
  • string.split(“,”) – given a single string, this creates an array of strings by splitting them based on the given argument, here since we are using csvs we will split each lines by commas

Given a line from the input file, split each line to extract information such as incident number, nature, and dates, along with other various attributes. The indices for all the contents required are as follows:

  • Incident number: index 0
  • Nature: index 1
  • Report Date: index 2
  • Occurrence Date: index 3
  • Location: index 4
  • Disposition: index 5
  • General Location: index 6
  • Category: use Category.fromString() using the Nature to get this value

Create a new Incident object with the above information, and then call addIncident() for that new Incident object.

  • To test buildIncidentTable, implement this method and the addIncident method and test in the driver.
  • All methods after rehash require the structure to be created using buildIncidentTable.


Submit RUCrimeDatabase.java to Autolab under “early submission” for 5 points extra credit.

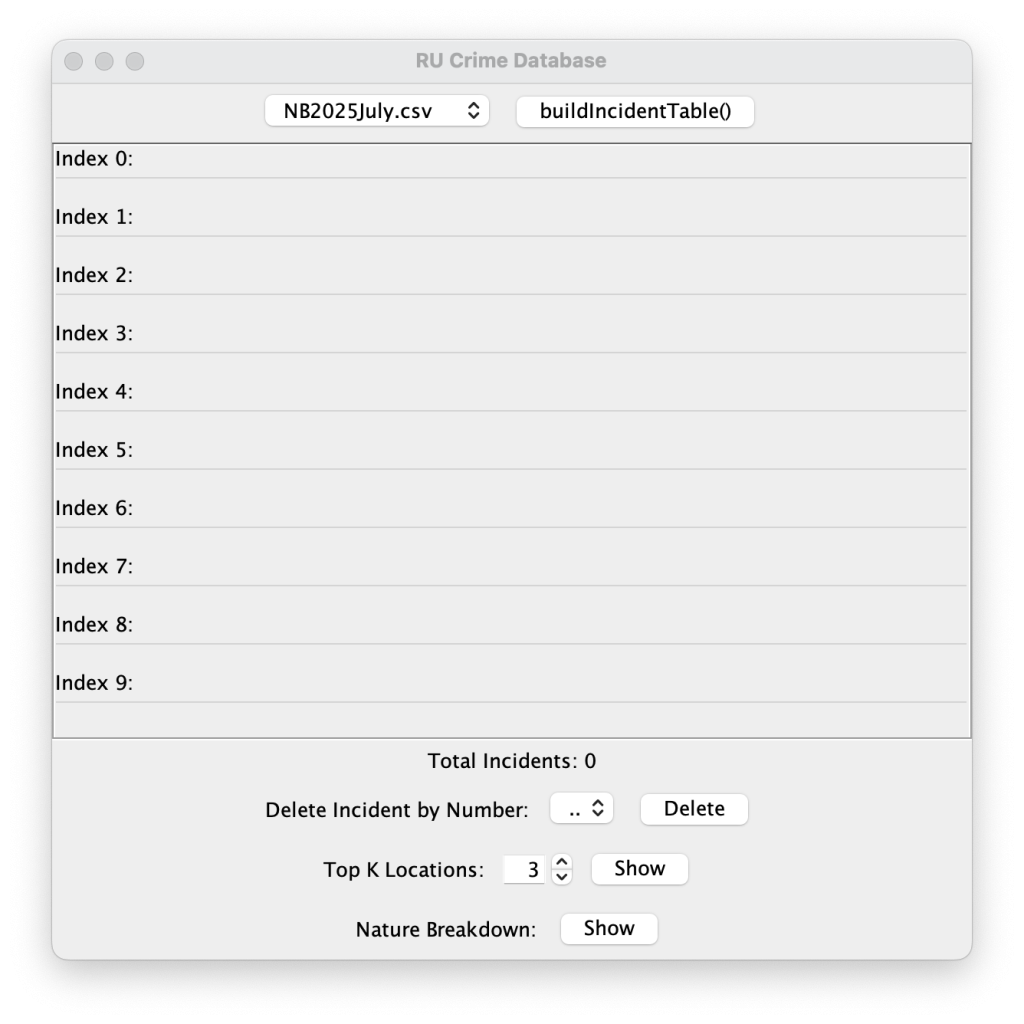

To test this method, first boot up the Driver. You will see a database display, with an input panel above it and a info panel below it.

Then, select the buildIncidentTable() button with NB2025July.csv selected. If you scroll down to the bottom of the resulting table, you should see this:

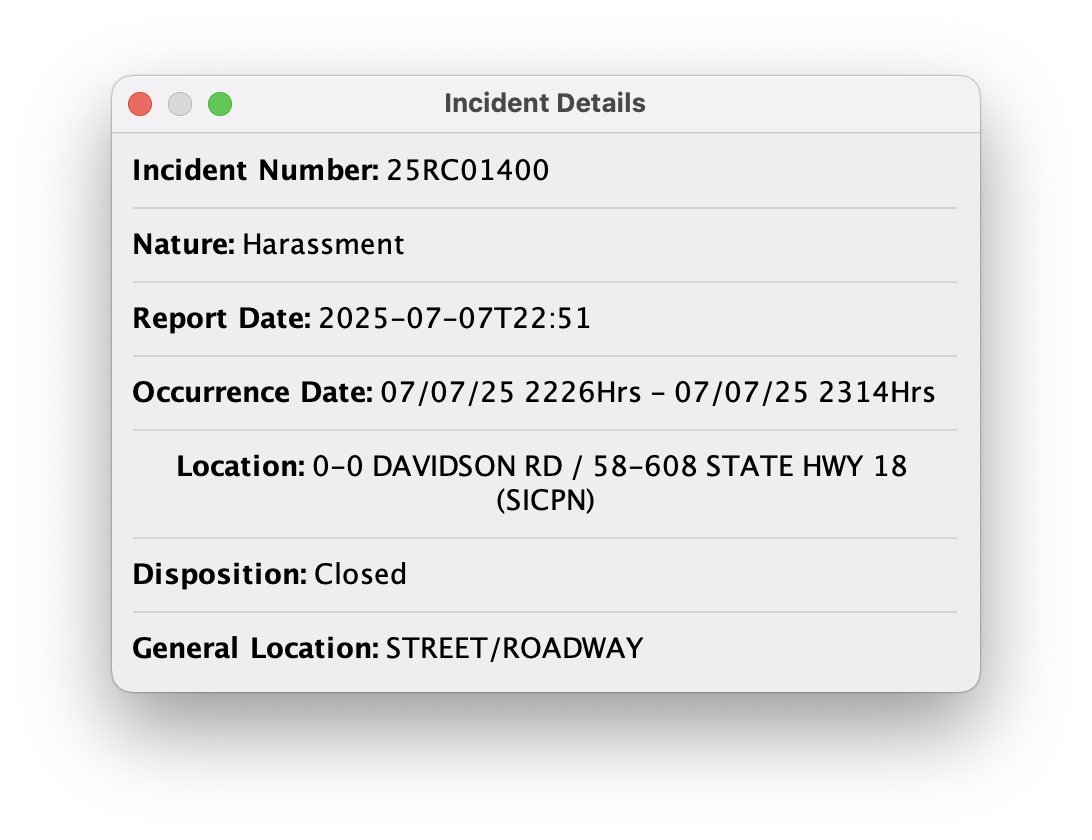

If you scroll to the top and select View Info for the first incident (25RC01400), it should match the following.

rehash()

This method is responsible for doubling the size of the incidentTable array, and rehashing all of the elements.

To complete this method:

  1. Store a reference to the original hash table
  2. Set the incidentTable attribute equal to a new hash table, with double the size.
  3. Set the totalIncidents back to 0.
  4. Iterate over all of the old incidents and call addIncident() on each.

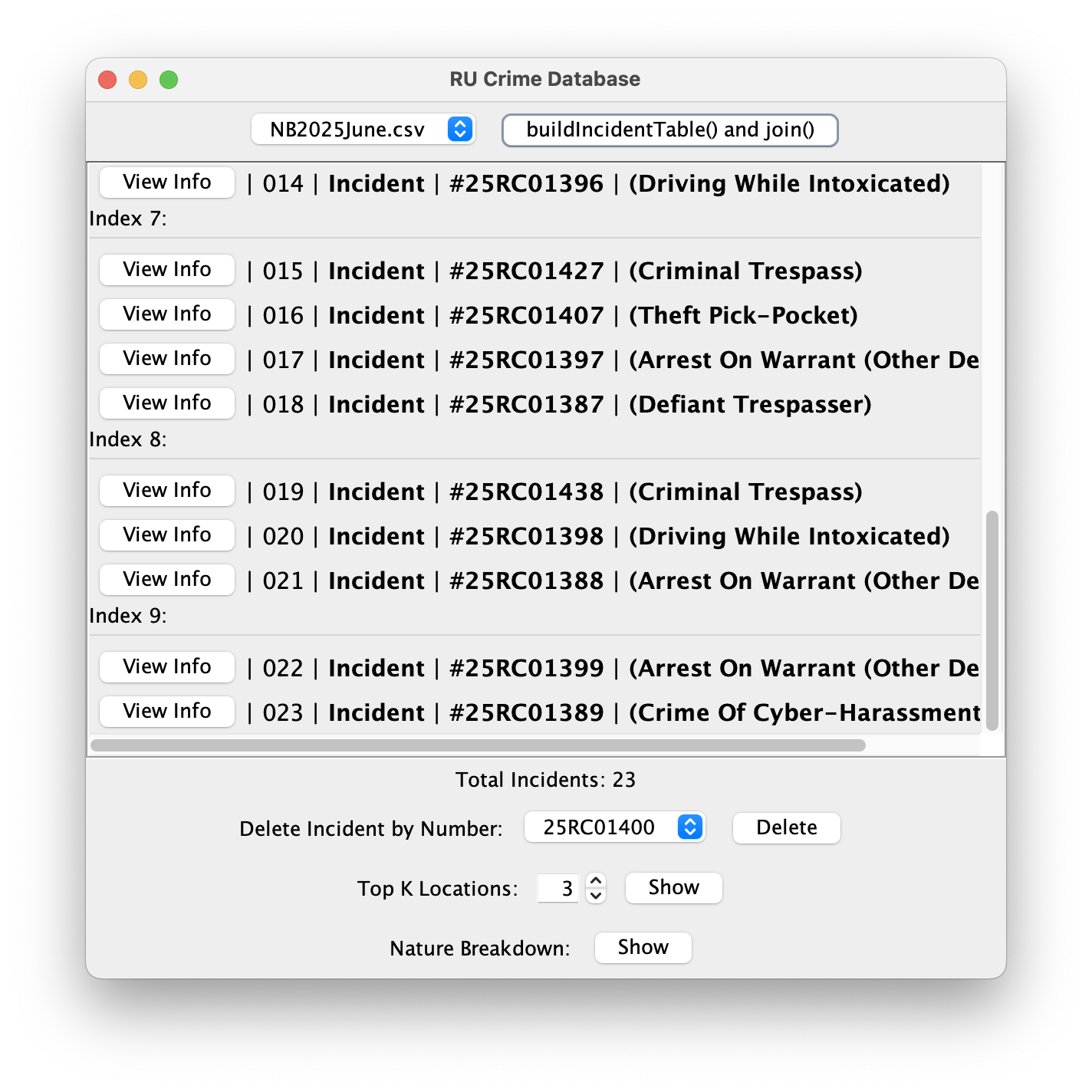

To test this method, boot up the Driver. Select buildIncidentTable() with NB2025June.csv. Then scroll down to the bottom of the database, and compare:



deleteIncident(String incidentNumber)

This method is responsible for deleting an Incident from the hash table based on its incident number.

To complete this method:

  1. Calculate the table index of the incident number
  2. Search the table list at the hashed index
  3. If an Incident exists with that incident number (use .equals to compare), remove it from the list, otherwise do nothing
        (make sure to handle front of list case)
  4. Decrement totalIncidents

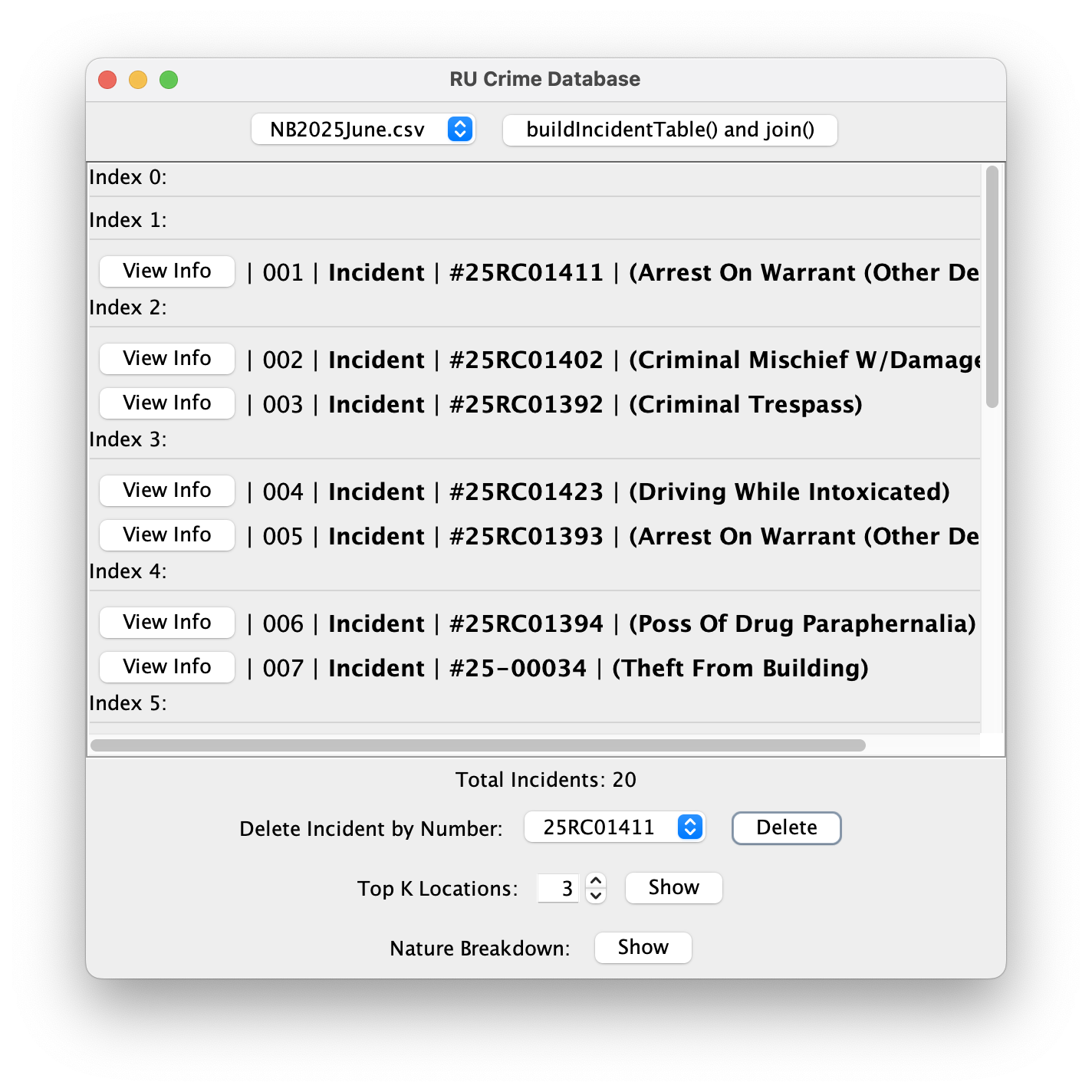

To test this method, buildIncidentTable() with NB2025July.csv, then delete the following incidents:

  • 25RC01400
  • 25RC01401
  • 25RC01422

After, compare to the following:

join(RUCrimeDatabase other)

This method takes another RUCrimeDatabase object, and merges its incidents into the current database.

To complete this method:

  1. Iterate over all of the incidents in the other RUCrimeDatabase (use .getIncidentTable)
  2. Insert each incident using addIncident() ONLY IF it does not currently exist in incidentTable

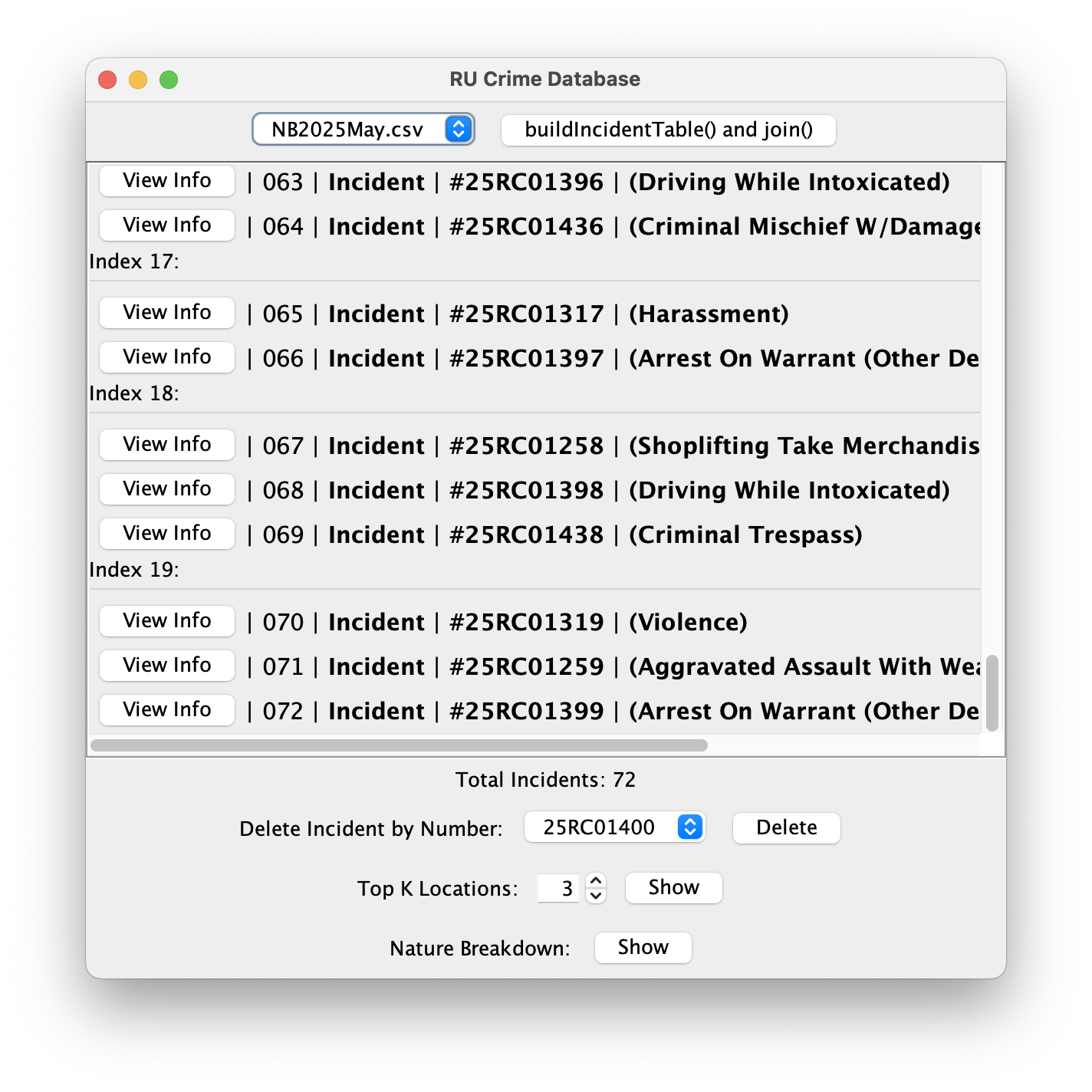

To test this method, first buildIncidentTable() with NB2025July.csv. Then, select NB2025June.csv, and select the “buildIncidentTable() and join()” button.

This will create a new RUCrimeDatabase and build its table, then call your join() method to merge it into the current database. Then, scroll to the bottom and compare:

topKLocations(int K)

This method returns an ArrayList of String location names, corresponding to the K locations with the most crime. K will be an integer, ex. if K = 3 then we want the top 3 locations with the most incidents occurred. If K > the number of locations, then return all locations.

To complete this method:

  1. Create a locations array and parallel counts array, to track how many times each location is seen.
    1. String[] locations = {“ACADEMIC”, “CAMPUS SERVICES”, “OTHER”, “PARKING LOT”, “RECREATION”, “RESIDENTIAL”, “STREET/ROADWAY”};
    2. int[] counts = new int[locations.length];
  2. Iterate over all of the incidents in the hash table
    1. For each, use incident.getGeneralLocation() to compare against the locations array
    2. Increment the corresponding index of the counts array.
  3. Create and return an arraylist which hold the top K location names, by using your locations/counts arrays. Insert into the arraylist in descending order (largest first).
Note: Autolab uses Java 17, so Java 21 methods are not recognized. For example do not use addLast() with array lists, you can use add() instead, as they do the same thing.

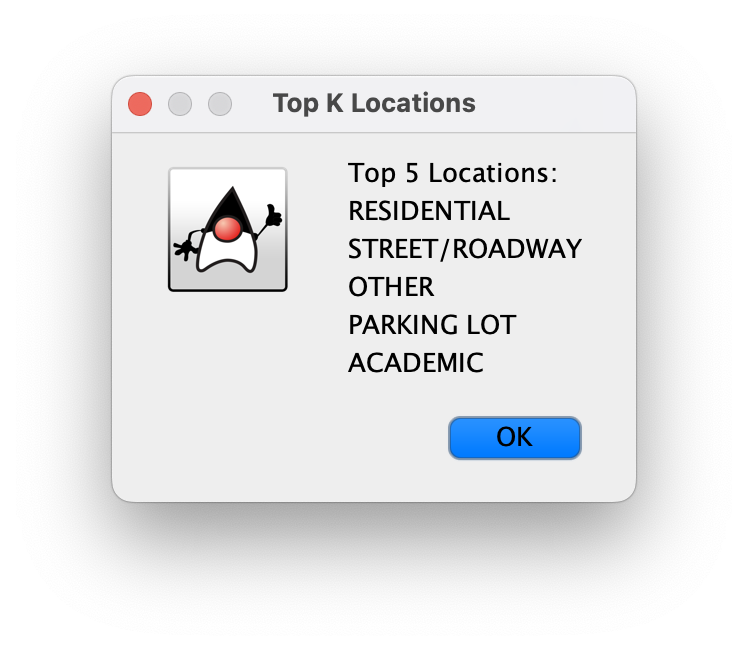

To test this method, first buildIncidentTable() with NB2025May.csv. Then, view and compare the top 5 locations using the info panel.

6aTop5

natureBreakdown()

This method returns a HashMap, which maps each unique incident Category (from Category.java) to its frequency percentage in the database.

Working With HashMaps

  • The java.util package contains many premade data structures such as ArrayList, LinkedList, and HashMap.
  • HashMap is a Java <key, value> data structure, functionally equivalent to a Hash Table.
    • HashMap<K,V> map = new HashMap<K, V>(); will initialize an empty map, with keys having type K and values having type V.
    • map.put(K key, V value) will put the given value into the hash map with the given key, or update the value if it is already present.
    • map.get(K key) will return the corresponding value for the given key.
  • HashMaps (and other implementations like HashSet, Hashtable) are good for solving many problems.
    • Tracking values for many different variables (keys)
    • Finding duplicates / frequency of elements
    • Tracking pairs (such as two sum)
  • You can loop over a HashMap with “for (Entry<Key, Value> entry : map.entrySet())”
    • Then, “entry” loops over every key-value pair in the map.
    • Use entry.getKey() and entry.getValue() to get the current key-value data.

Category.java is an Enum class, indicated by its class declaration “public enum Category”

  • An Enum is a simple object which represents constant values. In this case, the enum contains 5 values representing 5 different incident categories (PROPERTY, VIOLENT, MISCHIEF, TRESPASS, OTHER). You will use these values to help keep track of counts in your hashmap
  • These values are static, meaning they are accessible through the class itself.
    • ex: Category.TRESPASS, Category.OTHER…

For example:  key -> value,   PROPERTY -> 23.57,   VIOLENT -> 17.23,   MISCHIEF -> 15.25,   TRESPASS -> 23.90,   OTHER -> 20.05

To complete this method:

  1. Create a HashMap<Category, Double> to store the nature breakdown
  2. Call the put(key, value) method five times, to add each of the five nature categories to the HashMap each with value 0.0
  3. Iterate over all incidents, and using the getCategory() method, increment the corresponding HashMap value
    1. You can use map.put(key, map.get(key) + 1) to simply increment the value in place.
    2. replace “map” with your breakdown hash map and the “key” with the incidents Category
  4. Finally, convert each nature counter in the HashMap to a percentage using:
    1. map.put(key, 100 * (map.get(key) / totalIncidents))
    2. replace “map” with your breakdown hash map and the “key” with the incidents Category

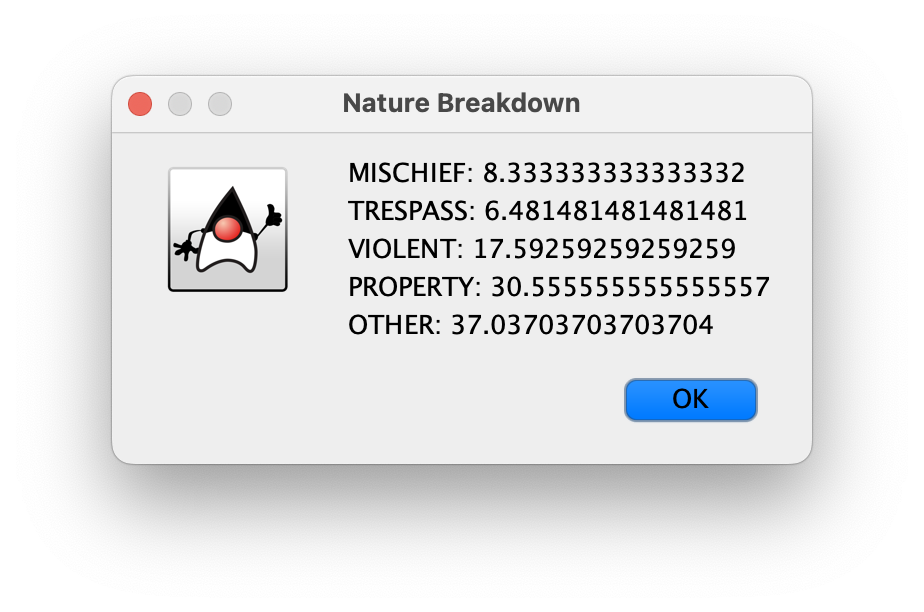

To test this method, first buildIncidentTable() with NB2025May.csv. Then, click the “Show” button for nature breakdown, to view and compare the values.

Executing and Debugging

In VS Code, ensure that you have the INNERMOST RUCrimeDatabase folder open by doing File > Open Folder and opening the folder labeled RUCrimeDatabase.

To Run: run the following commands from the innermost RUCrimeDatabase directory, containing the src and bin folders.

  1. Compile:
    1. Windows: javac -d bin -cp “lib/cs112.jar” src/crime/*.java
    2. Mac/Linux: javac -d bin -cp lib/cs112.jar src/crime/*.java
  2. Run:
    1. Windows: java -cp “bin;lib/cs112.jar” crime.Driver
    2. Mac/Linux: java -cp bin:lib/cs112.jar crime.Driver

Writing JUnit Tests

You do not have to submit this, this is for you to test your own code.

In the main project folder, there exists a “test” folder next to the “src” folder. This contains a premade JUnit test class for RUCrimeDatabase, which can run and test pieces of your code. To compile and run these tests, you must install the Test Runner extension. See the Programming FAQ for more info on VS Code extensions.

Two provided tests are given for testAddIncident() and testBuildTable(). You can use these to test your Early Submission methods. Test stubs for the remaining methods are also provided. If you choose to implement these, remove the fail() statements at the bottom before running them.

You can finish writing the test methods, by using JUnit test methods (such as assertTrue(), assertFalse(), assertEquals()) in order to test your code.

Tests not running?

First, make sure you’re in the right folder and the tests are implemented. Next, if you have the “Code Runner for Java” or Oracle “Java” extension, make sure you uninstall those extensions.

VSCode Extensions

You can install VSCode extension packs for Java. Take a look at this tutorial. We suggest:

Importing VSCode Project

  1. Download RUCrimeDatabase.zip from Autolab Attachments.

  2. Unzip the file by double clicking.

  3. Open VSCode

    • Import the folder to a workspace through File > Open Folder

Executing and Debugging

  • You can run your program through VSCode or you can use the Terminal to compile and execute. We suggest running through VSCode because it will give you the option to debug.

  • How to debug your code

  • You can hit the triangle “Run Java” button at the top of the Driver.java class, or right click on Driver.java and select “Run Java”

NOTE: if you have RUCrimeDatabase (2) -> RUCrimeDatabase or CS112 -> RUCrimeDatabase in VS Code, open the INNERMOST RUCrimeDatabase through File -> Open Folder.

Before submission

REMOVE all print statements you have written in RUCrimeDatabase.java

Collaboration policy. Read our collaboration policy on the course syllabus.

Submitting the assignment. Submit RUCrimeDatabase.java separately via the web submission system called Autolab. To do this, go to Autolab and find the correct assignment and submit your Java file.

Getting help

If anything is unclear, don’t hesitate to drop by office hours or post a question on Piazza.

  • Find instructors and Lead TAs office hours here
  • Find tutors office hours on Canvas -> Tutoring
  • In addition to office hours we have the Coding and Social Lounge (CSL), a community space staffed with student community managers which are undergraduate students further along the CS major to answer questions.

By Anna Lu and Krish Lenka
